Gomaco Trolley Company has manufactured a set of four semi-convertible, double-truck trolley cars. They operated in the downtown Portland, Oregon, district on the Tri-Met MAX light rail line from 1992 through 2013. In 2014, trolleys #511 and #512 went to St. Louis Loop Trolley Transportation Development District, in St. Louis, Missouri, and cars #513 and #514 went to the Oregon Electric Railway Historical Society to run on the Willamette Shore Trolley Line in Lake Oswego, Oregon.

The cars are faithful reproductions of the 500 series car manufactured by J.G. Brill Company for the Portland Traction Company in the early 1900s. Historical accuracy and attention to detail were combined with passenger and operator safety in the production of these cars.



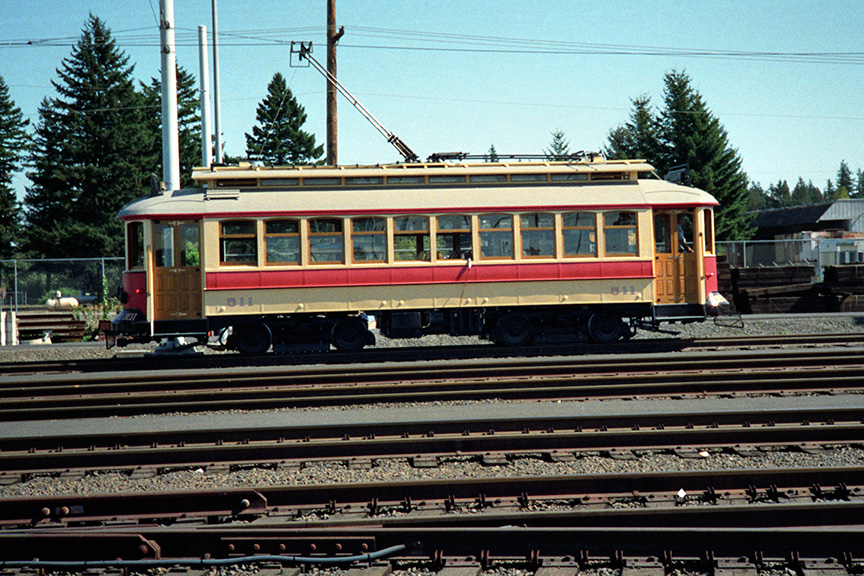

Replica Council Crest Trolley Specifications

Car Numbers:
#511, #512 - St. Louis Loop Trolley Transportation Development District, St. Louis, Missouri.
#513, #514 - Oregon Electric Railway Historical Society, Lake Oswego, Oregon.

Car Builder: Gomaco Trolley Company, Ida Grove, Iowa 51445.

Source of Running Equipment: Chicago Transit Authority and Massachusetts Bay Transportation Authority.

Running Equipment: Westinghouse 1432H traction motors, 55 hp, 750 volts, air brakes, Westinghouse YX-25 Motor-Generator with a Quincy 325LS compressor.

Controls: Westinghouse cineston controller installed in a replica K35 enclosure.

Length: 40 feet.

Width: 8.5 feet.

Height: 12.6 feet.

Weight (approximate): 55,000 pounds.

Balanced Speed: 30 mph.

Seating: 40 sitting, 25 standing (based on six people per square meter).

Total Crush Load: 65 people (does not include operator).

Seats: Cane seats. 16 rollover. Four stationary corner benches.

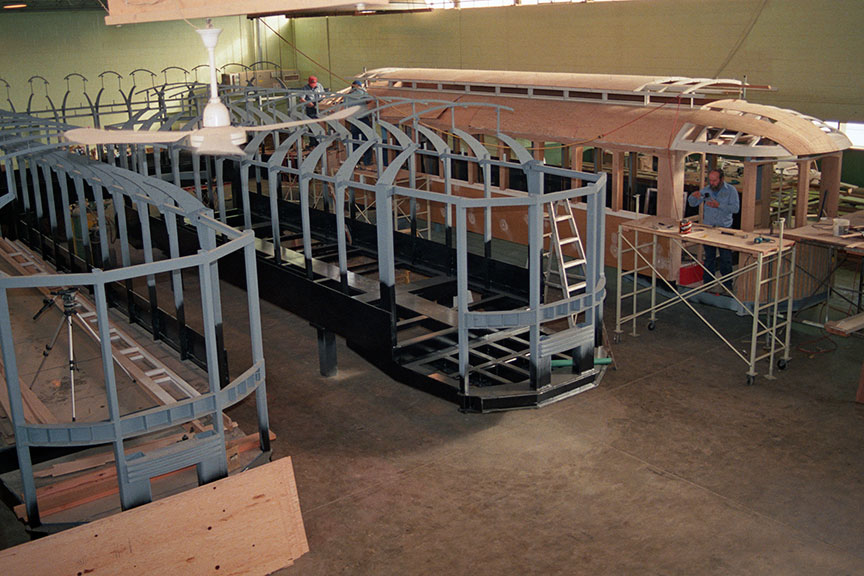

Frame: New steel construction developed by Gomaco Trolley Company.

Windows: 10 per side.

Fittings, Solid Brass: New castings by Gomaco Trolley Company.

Woods:
Window sash and interior trims and doors - oak.
Outer woodwork - ash and oak.
Headlining - tongue and groove oak and oak veneer.
Floor - ply metal subfloor with grooved maple boards on wearing surfaces, Douglas fir under seats and ribbed rubber flooring on platforms.

Paint: Red and cream. Color and details are selected by customer.

Clerestory Glass: White glue glass on all sides.

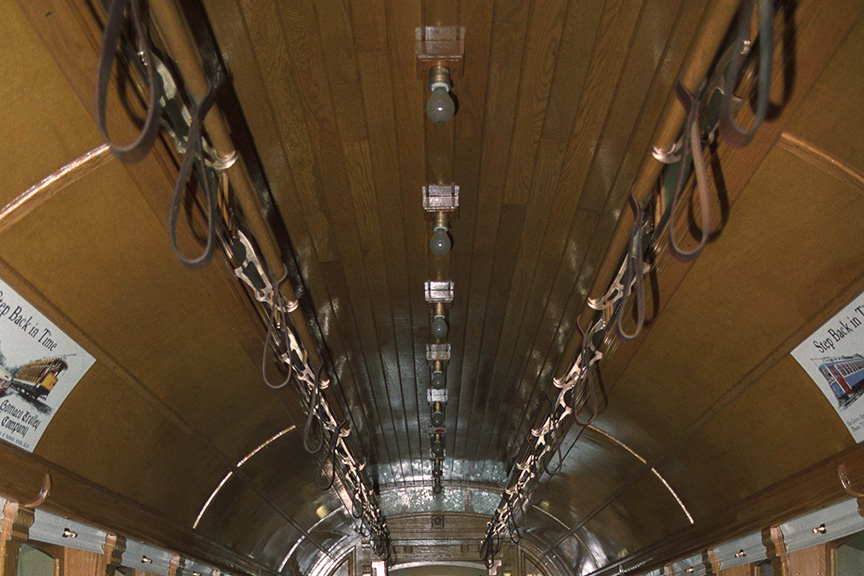

Lights:
Headlights - Automotive sealed beam headlight in housing by Gomaco Trolley Company.
Marker lights - Automotive-style low voltage market lights.
Interior lights - 110 volt AC incandescent bulbs powered by an on-board voltage inverter.

Whistles: Ohio Brass three-tone air chime with WABCO valves.

E-Stops: Emergency stop button located in each operator station.

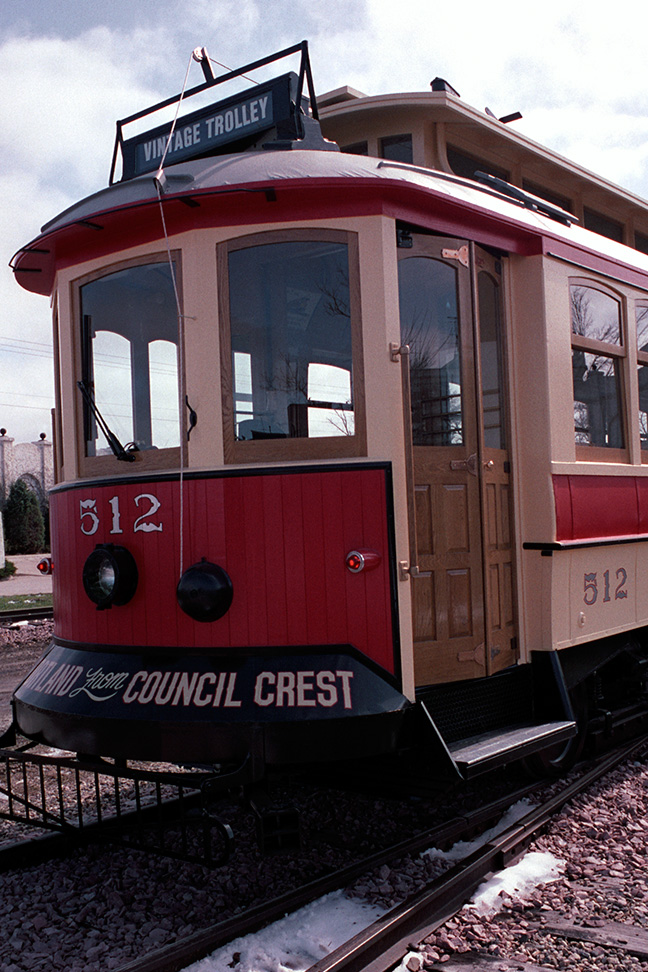

Steps: One solid mounted step at each door location.

Signal Bell: Brass, made by Gomaco Trolley Company. A floor pedal to operate on each end of the car.

Interior Advertising Panel.

Brakes: Air-operated friction brakes.

Floor: Ply metal subfloor with grooved maple boards on wearing surfaces. Douglas fir under seats and ribbed rubber flooring on platforms.

Ceiling: Shiplap oak panels.

Roof: Plywood roof with painted canvas cover.

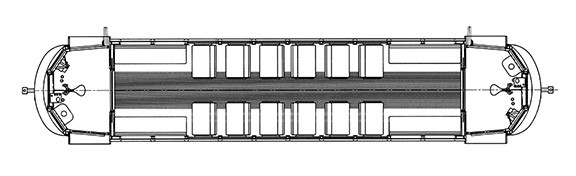

Oregon Replica Council Crest Trolley floor plan

Floor plan for the replica Council Crest trolleys in Oregon.

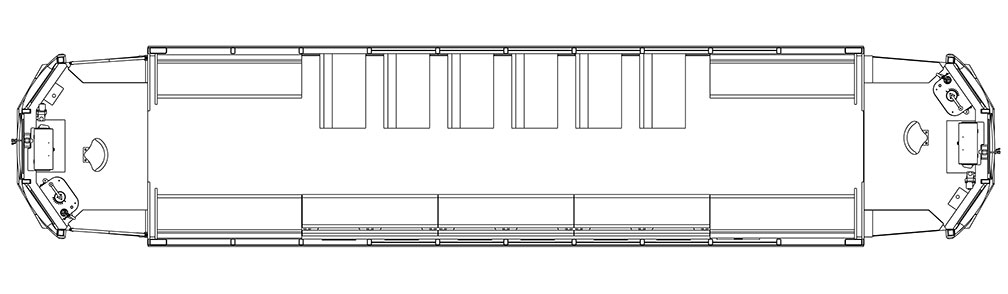

St. Louis Replica Council Crest Trolley floor plan

Floor plan for the replica Council Crest trolleys in St. Louis.





Photos

Replica Council Crest Trolley

Replica Council Crest trolley #514 passes through busy downtown Portland, Oregon.



Replica Council Crest Trolley

Gomaco Trolleys can operate alongside the daily car and truck traffic.



Replica Council Crest Trolley

The replica Council Crest trolleys draw a wide variety of visitors.



Replica Council Crest Trolley

Replica Council Crest trolleys #511 through #514 are lined up and ready for a day of riders in Portland, Oregon.



Replica Council Crest Trolley

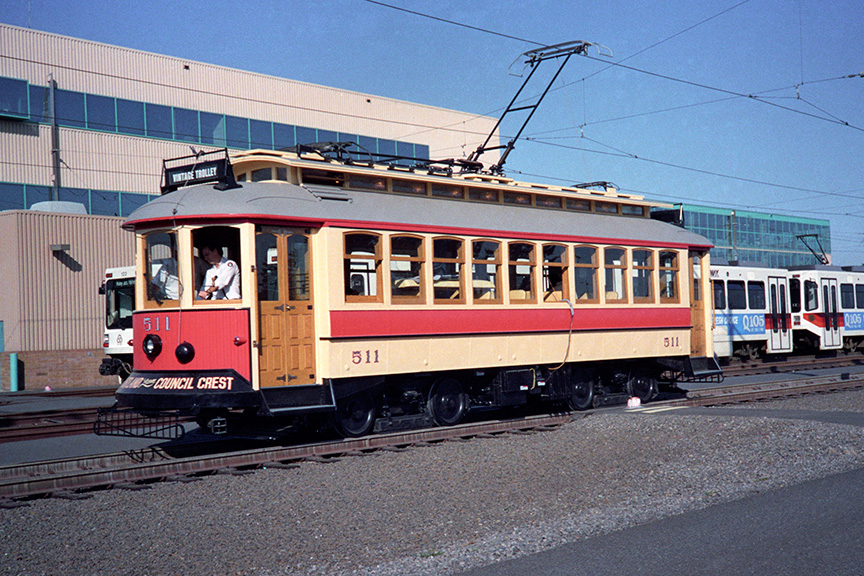

Council Crest trolley #511 picks up passengers at a trolley stop along the route.



Replica Council Crest Trolley

Each trolley will accommodate 65 guests, 40 sitting and 25 standing.



Replica Council Crest Trolley

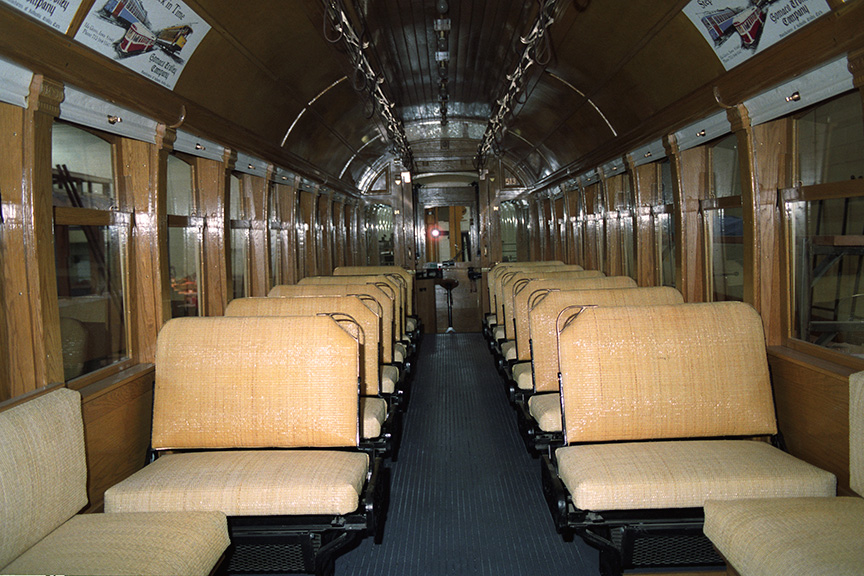

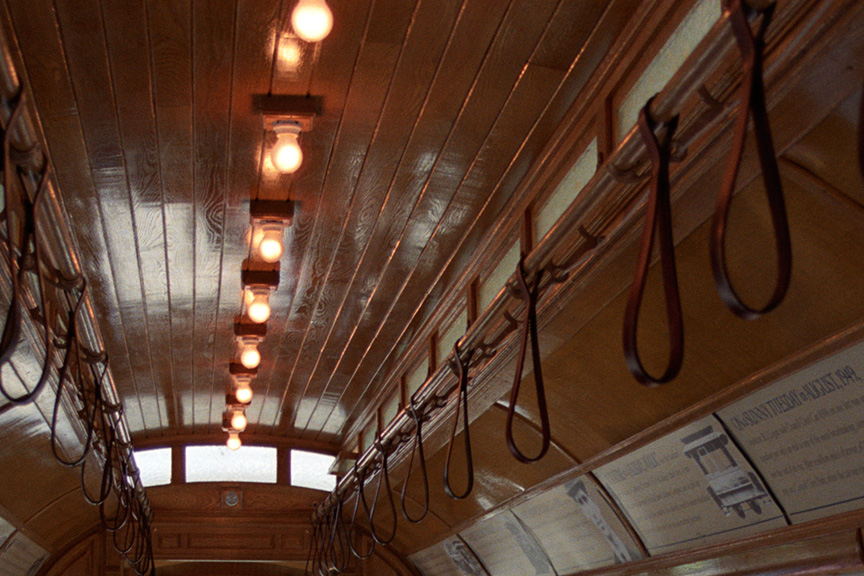

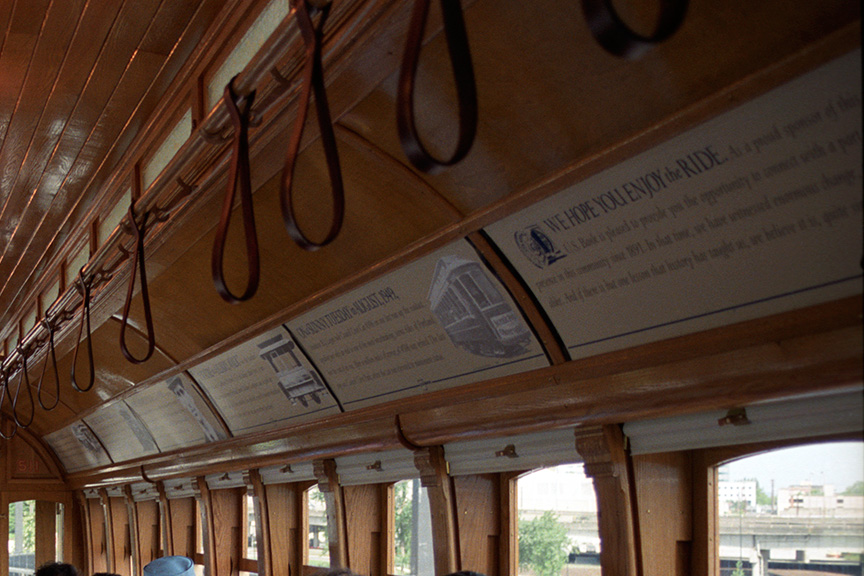

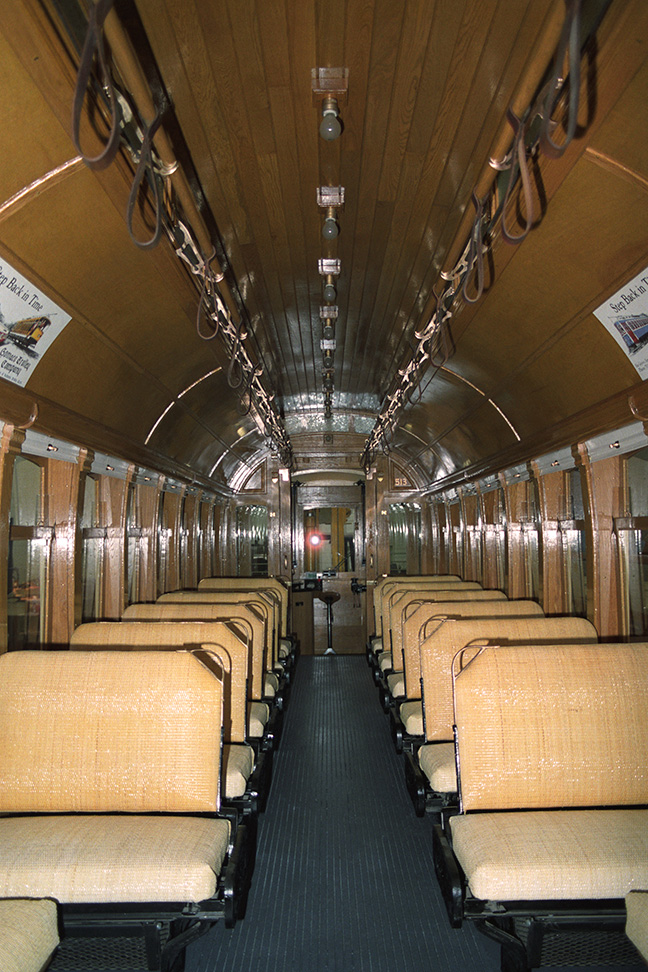

The replica Council Crest trolleys each contain cane seats, 16 rollover and four stationary corner benches. Interior woods are oak and maple. Advertising panels line the ceiling on both sides of the trolleys.
